Signal input features 5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.
Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs.
Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings
| Laser | Intern & extern |
| Optisch bereik | 50 - 2000 mm |
| Hoek | +/- 80 graden |
| Lichtbron | 1mw Laser 635nm class II |
| Snelheidsbereik | 3 - 99,999 RPM or RPS equivalent |
| Resolutie | max. 0.001 (autorange) |
| Nauwkeurigheid | 0.05% +/- 1 digit |
| Display update | 0.8 sec |
| Opname snelheid | 0.1 sec |
| Teller | 0-99999 revs or length in linear |
| Tijd interval | 0-99999 seconden (automatisch) |
| Geheugen | laatste waarde wordt 1 minuut opgeslagen |
| Meetdoel indicator | Ja |
| Lage batterijspanning indicator | Ja |
| Signal Input | 3.5mm socket for external optical sensor |

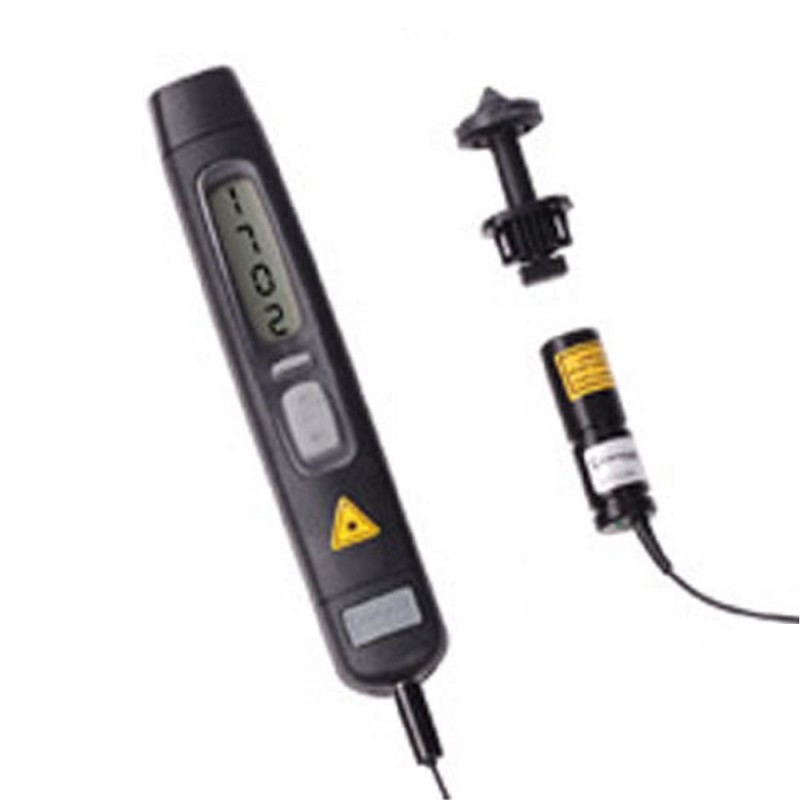

| Remote Sensor | MiniLaser with 1 metre cable included |
| Stroomvoorziening | 4 x AAA batteries (included) |
| Contact Adapter | Inclusief |
| Carrying Case | Inclusief |
| Reflective Tape | Inclusief |
