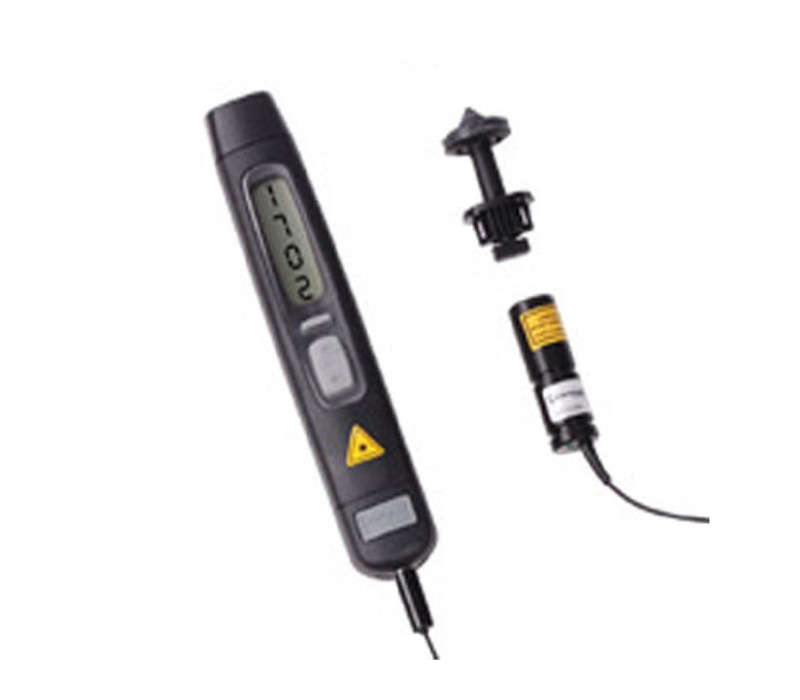

A2103-LSR-K Advent Professionele Optische/Contact Tachometers

Name: A2103-LSR-K Advent Professionele Optische/Contact Tachometers
SKU: 126507
Price: 658.00 EUR

Signal input features 5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.

Contact Measurement
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs.

Additional information
Special capture and averaging features:
Maximum - Captures max. speed in 0.1 secs
Minimum - Captures min. speed in 0.1 secs
Timebase - 0.1 seconds in Capture mode
Average - Averages over last 8 readings

€ 658,00

Nu bestellen

Time & Count modes
Data capture and very fast response modes - 0.1 seconds update time
Optical range of up to 2 metres - the optical performance is second to none
Traceable certificates supplied as standard
A very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance ranges
Additional remote Laser Optical Sensor for rpm monitoring in difficult access applications
Unique inverting display, allows easy reading when in limited access situations

Laser	Intern & extern
Optisch bereik	50 - 2000 mm
Hoek	+/- 80 graden
Lichtbron	1mw Laser 635nm class II
Snelheidsbereik	3 - 99,999 RPM or RPS equivalent
Resolutie	max. 0.001 (autorange)
Nauwkeurigheid	0.05% +/- 1 digit
Display update	0.8 sec
Opname snelheid	0.1 sec
Teller	0-99999 revs or length in linear
Tijd interval	0-99999 seconden (automatisch)
Geheugen	laatste waarde wordt 1 minuut opgeslagen
Meetdoel indicator	Ja
Lage batterijspanning indicator	Ja
Signal Input	3.5mm socket for external optical sensor
Remote Sensor	MiniLaser with 1 metre cable included
Stroomvoorziening	4 x AAA batteries (included)
Contact Adapter	Inclusief
Carrying Case	Inclusief
Reflective Tape	Inclusief

Producten

Item	Product	Prijs	Aantal	Actie
131120	A2103/LSR/K - Advent Professional Optical/Contact Tachometer	€ 658,00

Alle genoemde prijzen zijn exclusief btw. en exclusief handelings- en verzendkosten.
Beschikbaarheid:
Beschikbaar: 1 - 3 dagen ,
Levertijd: 1 - 3 weken ,
speciale bestelling aanvraag
